flexible curved screen

P1.53 Curved Full-Color LED Screen： Delicate P1.53 dot pitch restores rich color layers. Indoor unit offers stunning high-definition performance, while outdoor variant features full waterproof, sun-proof and heat dissipation systems.

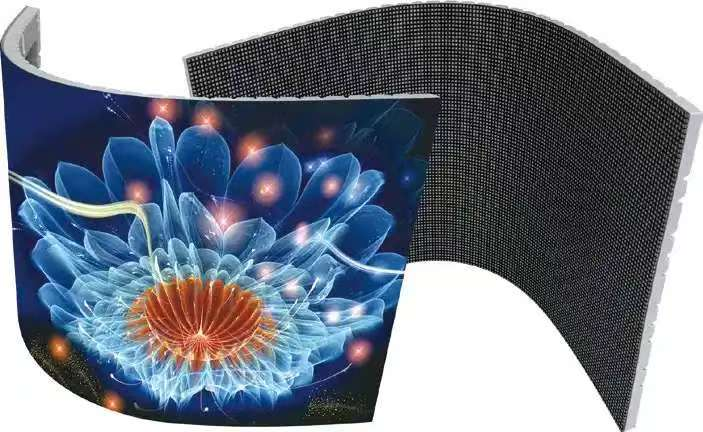

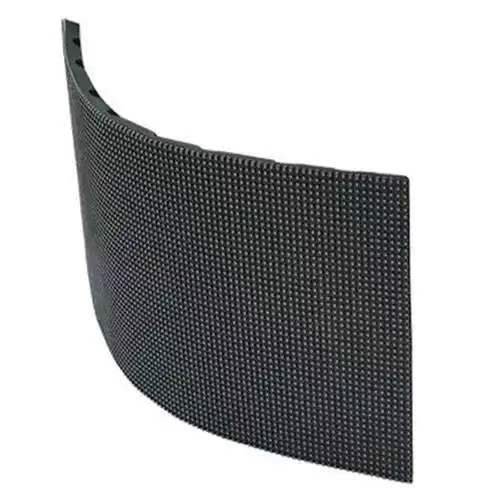

Flexible curved LED modules support arbitrary radian splicing for seamless curved screens. High refresh rate & high gray scale deliver uniform, flicker-free images.

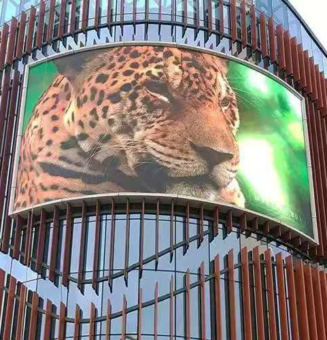

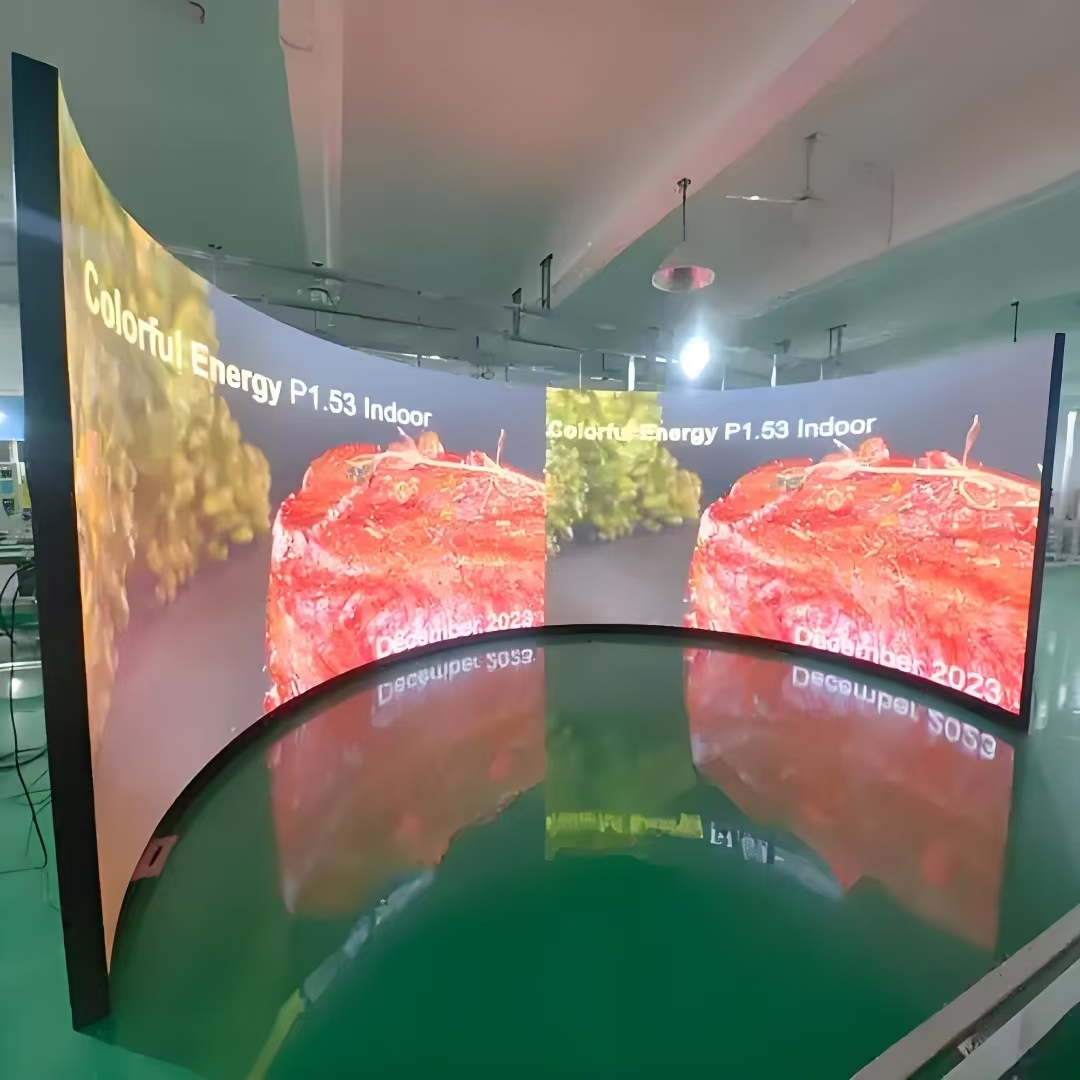

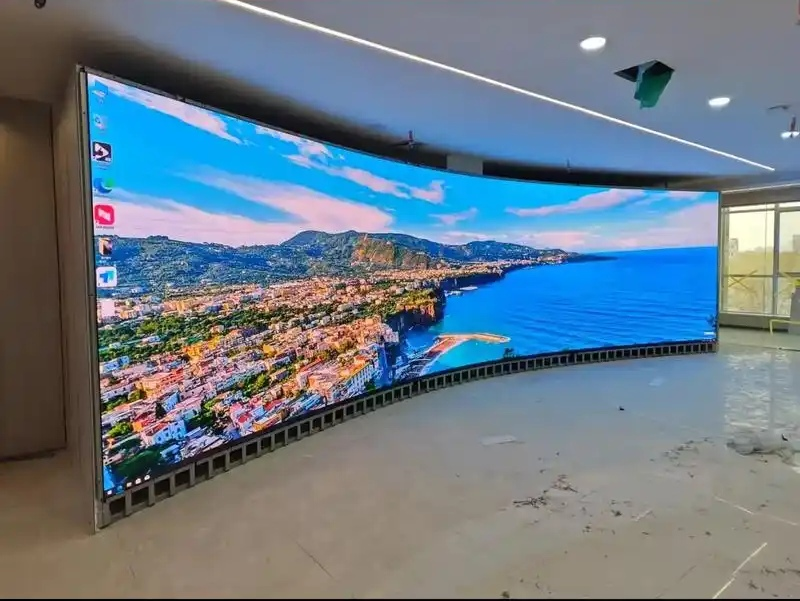

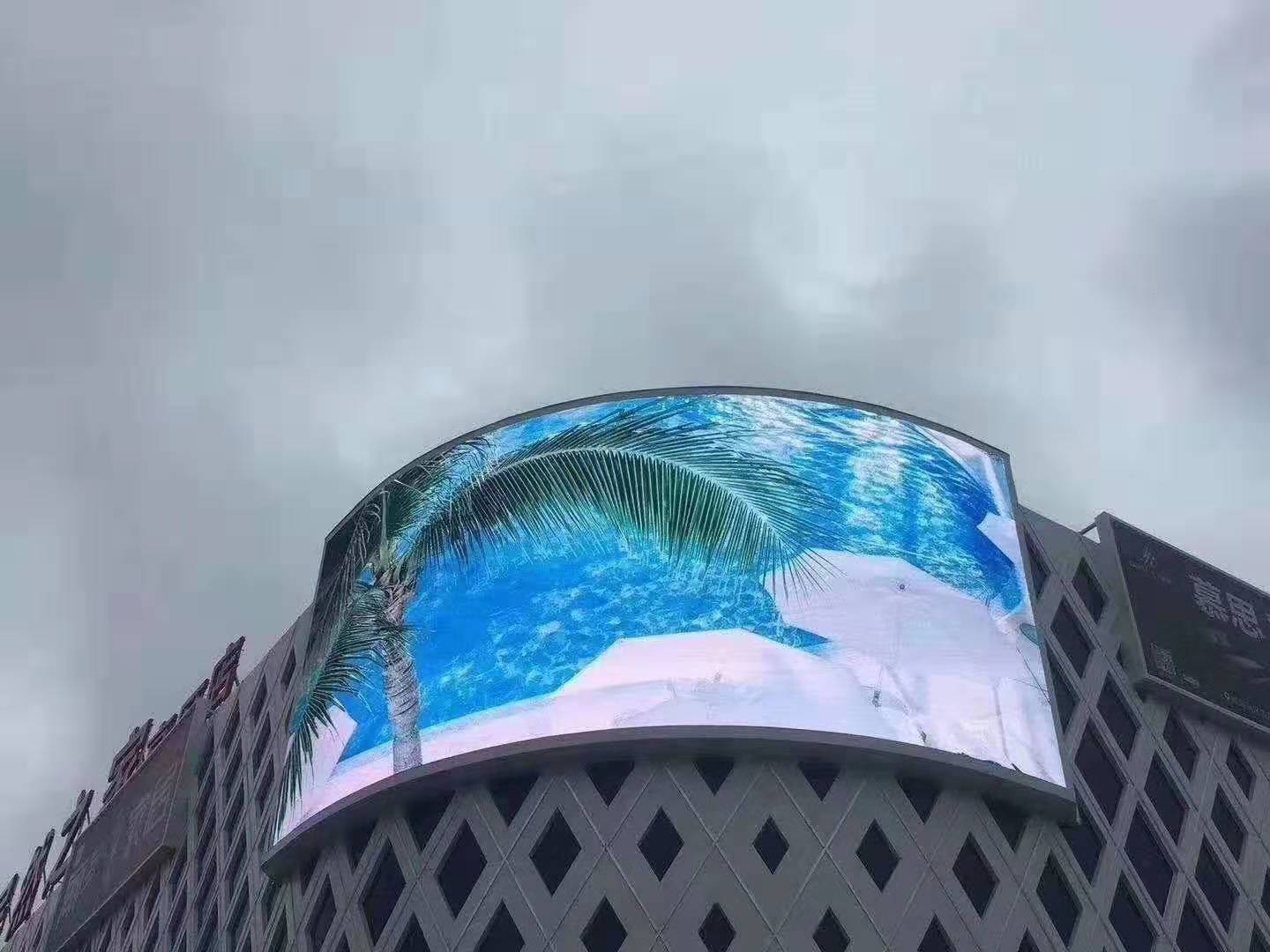

Curved LED displays for indoor and outdoor use support customizable radian splicing. They create immersive viewing experience. Unique curved appearance stands out for commercial advertising, exhibition and creative space decoration.

P1.53 Curved LED Module Technical Parameters： Pixel Pitch: P1.53mm
Pixel Configuration: 1R1G1B
Module Size: 320×160mm
Resolution Per Module: 208×104 pixels
Pixel Density: 428,400 pixels/㎡
Brightness: 500–1000 cd/㎡ (Indoor) / 4500–5500 cd/㎡ (Outdoor)
Gray Scale: 16bit
Refresh Rate: ≥3840Hz
Viewing Angle: H160° / V160°
Color Temperature: 3000K–9000K adjustable
Input Voltage: DC 4.2V
Power Consumption: Max 320W/㎡, Avg 160W/㎡
Operating Temp: -20℃ ~ +50℃
Protection Level: IP30 (Indoor) / IP65 (Outdoor)
Service Life: ≥100,000 hours
